Part No. Size Voltage Rating Current Rating Breaking Capacity
Characterstic
Agency Approval

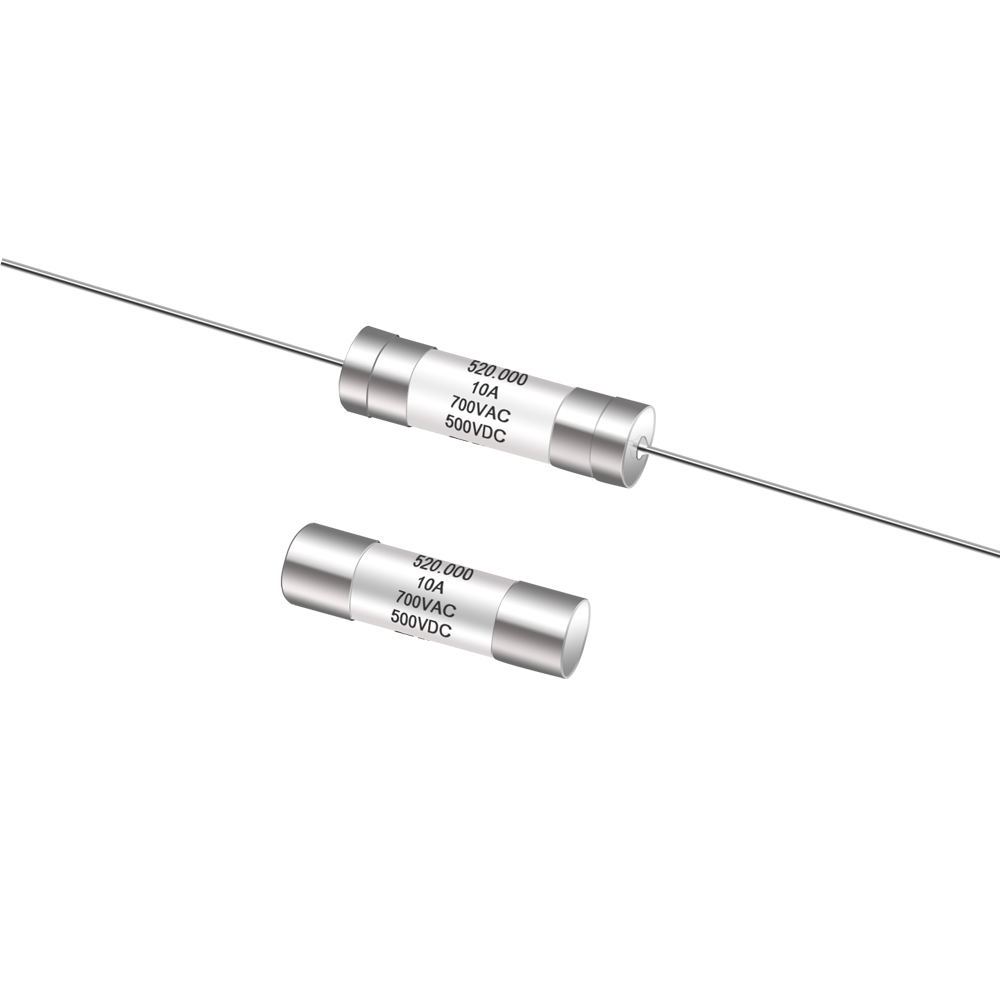

520.000 5x 20 mm 700Vac/500Vdc 0.2-20A 500A
Fast Acting UL
Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Agency Approval
520.300 5x 20 mm 0.2-30A 300Vac/dc 5kA
Fast Acting UL
Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Agency Approval

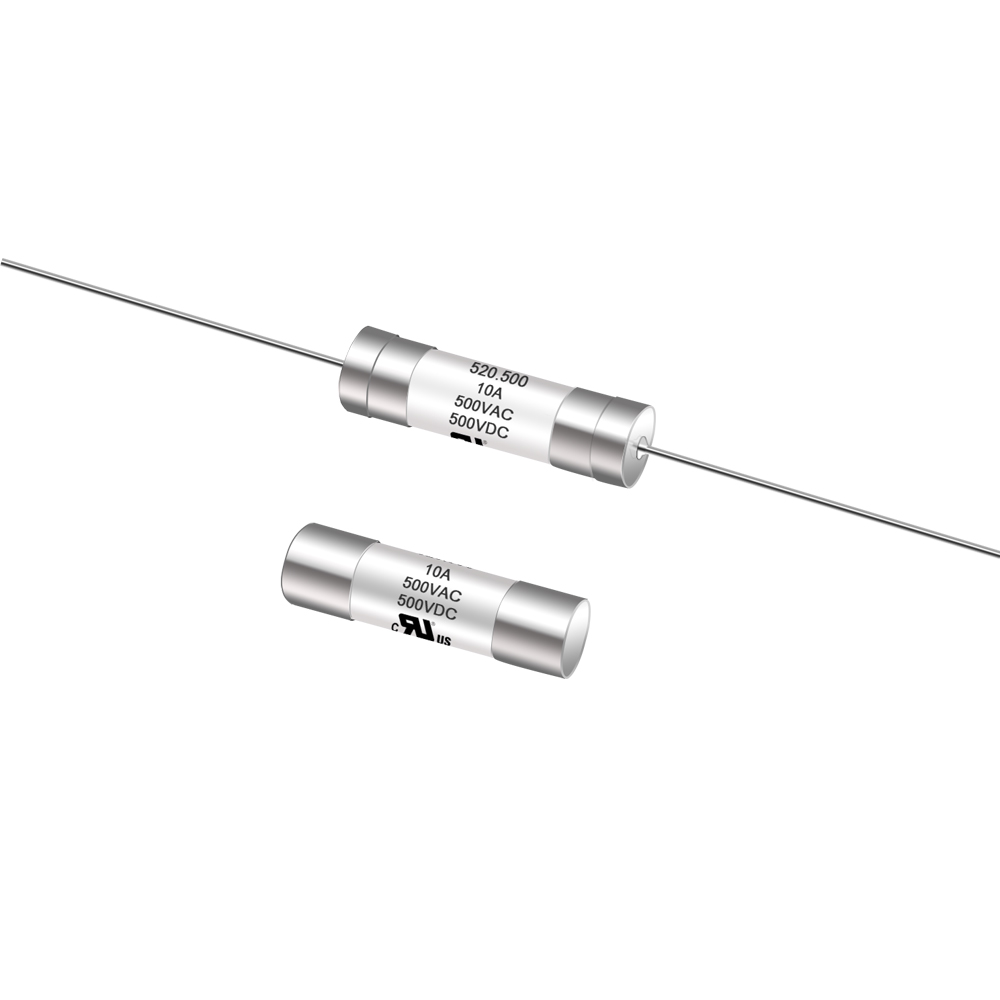

520.500 5x 20 mm 0.2-20A 500Vac/dc 5kA
Fast Acting UL

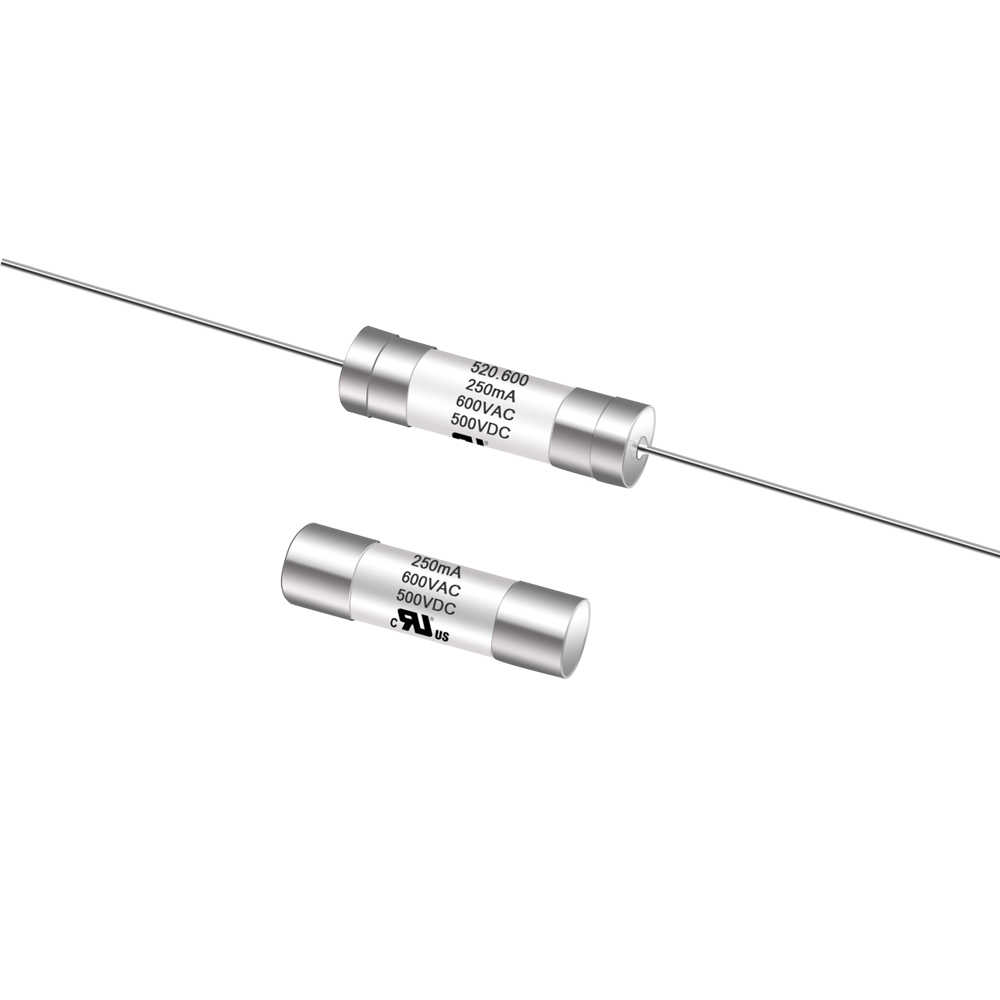

Fast Acting Ceramic Fuse 快斷型陶瓷管保險(xiǎn)絲 520.600 0.2-20A 600Vac/500Vdc

Part No.	Size	Current Rating	Voltage Rating	Breaking Capacity	Characterstic	Agency Approval
520.600	5x 20 mm	0.2-12A	500Vdc	5kA	Fast Acting	UL
520.600	5x 20 mm	15-20A	500Vdc	500A	Fast Acting	UL
520.600	5x 20 mm	0.2-20A	600Vac	500A	Fast Acting	UL

Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Agency Approval
520.800 5x 20 mm 0.2-30A 250Vac/dc 300A
Fast Acting UL
Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Agency Approval

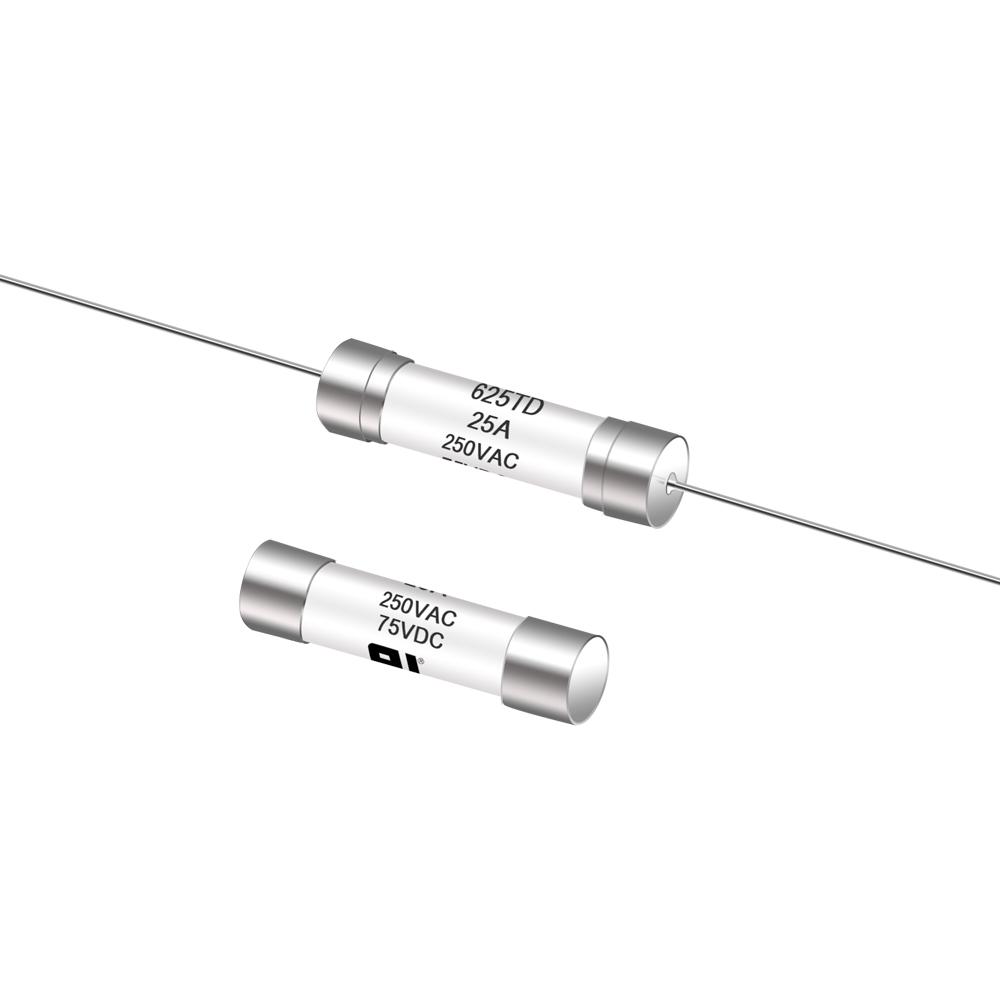

625TD 6 x 25 mm 5-50A 250Vac/75Vdc 2500A
抗浪涌防雷擊 UL
Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Agency Approval
632.000 6 x 32 mm 0.2-12A 1000Vac/dc 10kA
Fast Acting UL
Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Agency Approval

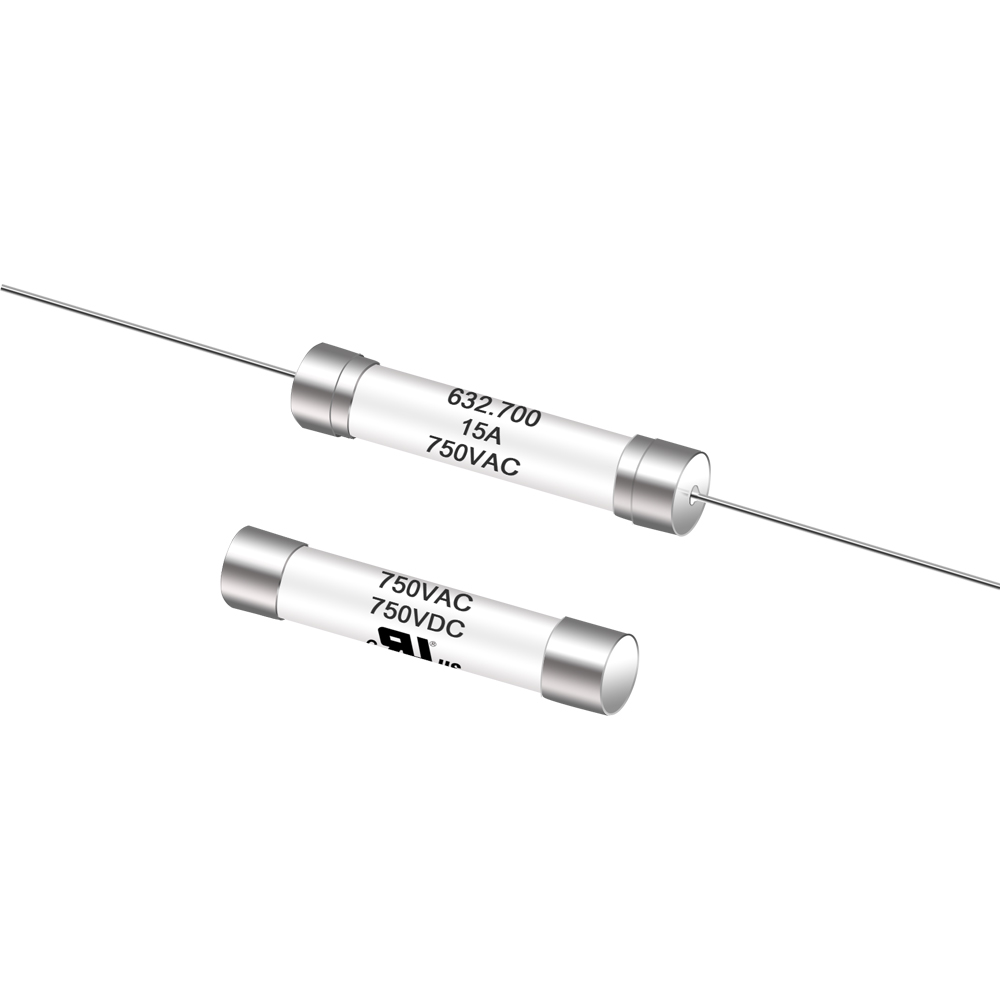

632.700 6 x 32 mm 0.2-30A 750Vac/dc 10kA
Fast Acting UL
Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Agency Approval

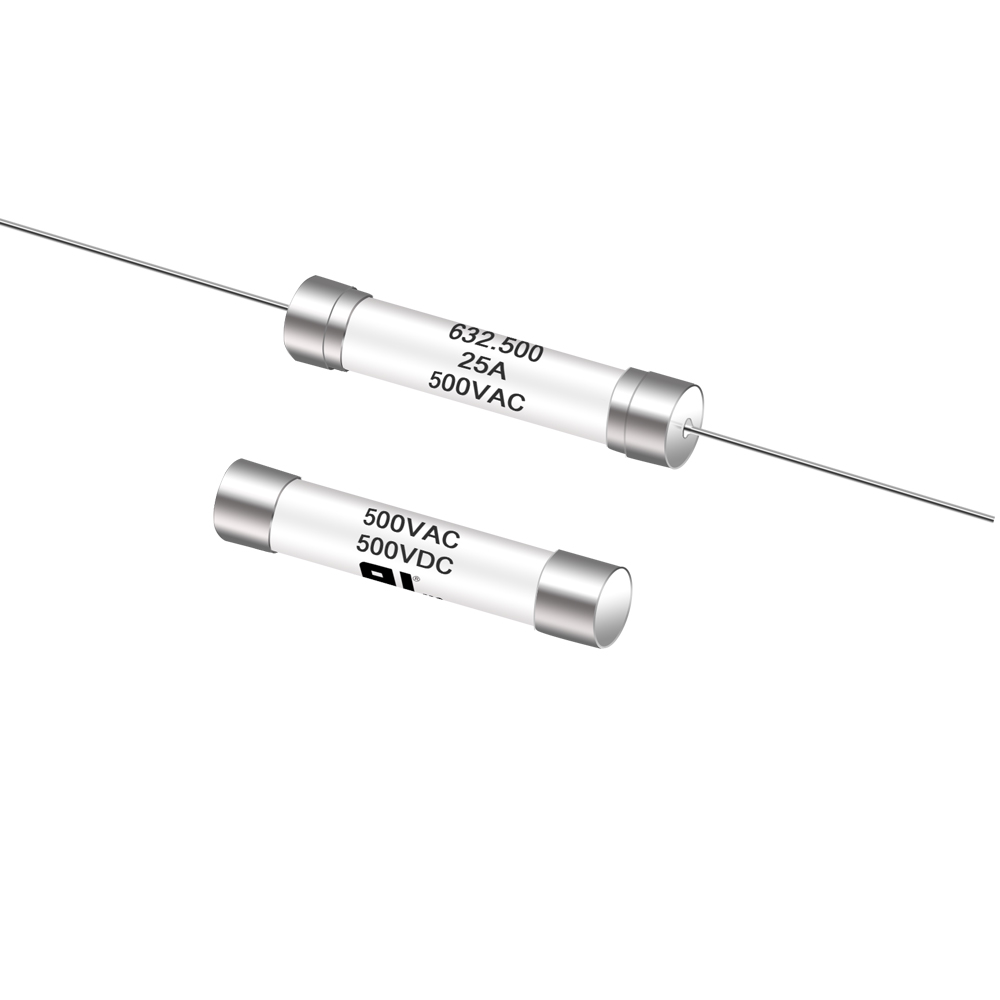

632.500 6 x 32 mm 0.2-30A 500Vac/dc 10kA
Fast Acting UL
Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Agency Approval

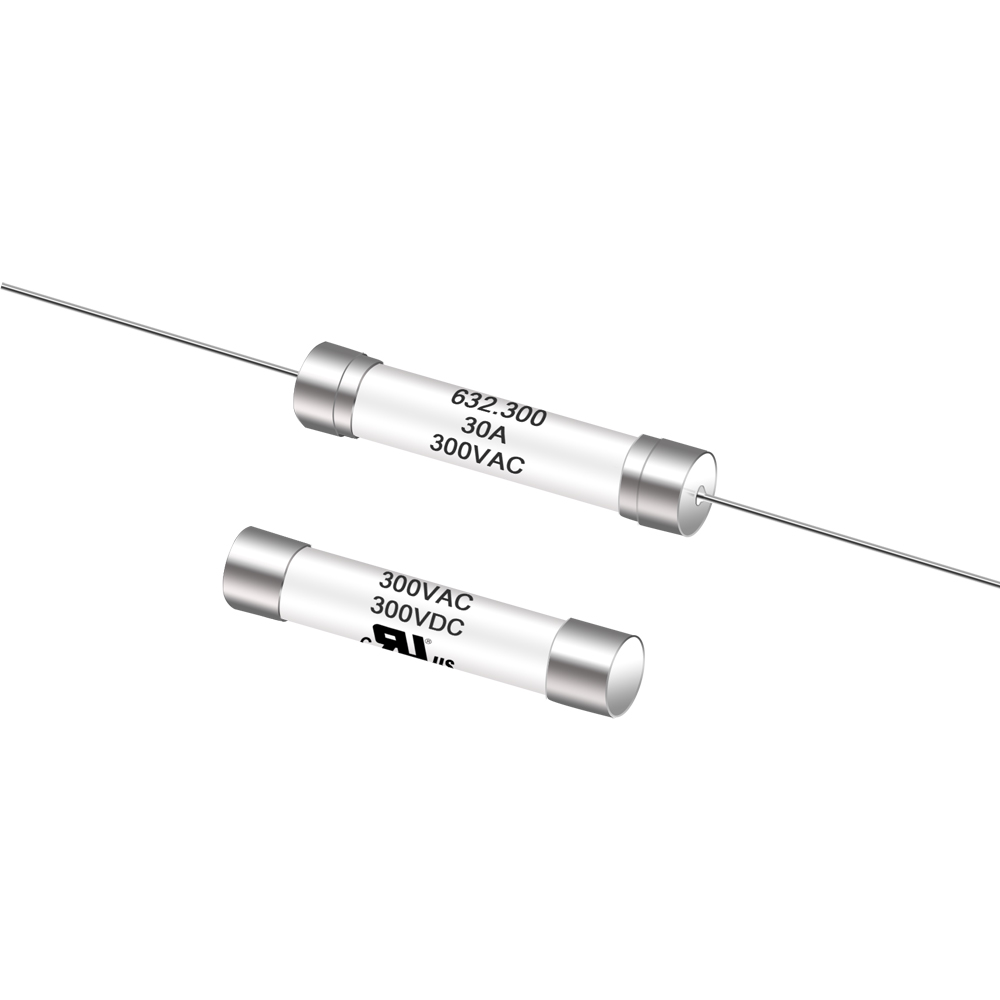

632.300 6 x 32 mm 0.2-30A 300Vac/dc 10kA
Fast Acting UL
Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Agency Approval

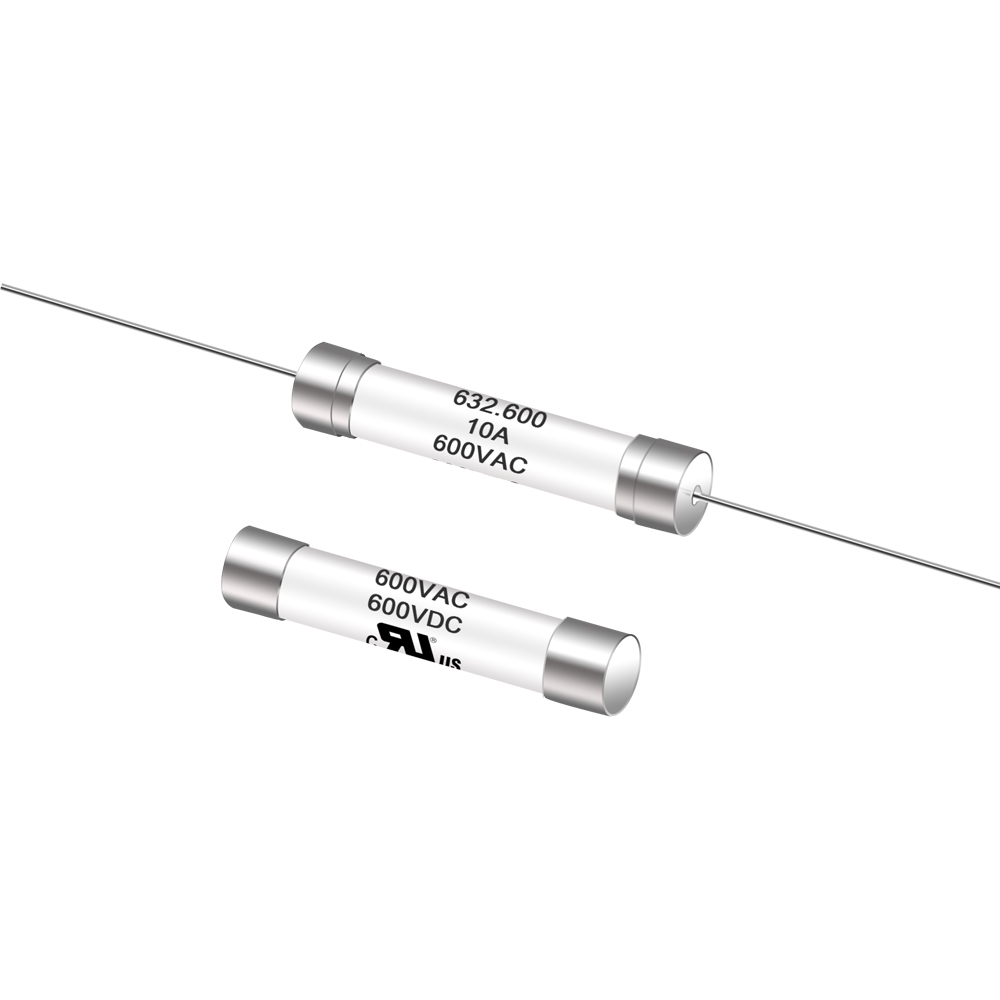

632.600 6 x 32 mm 0.2-30A 600Vac/dc 10kA
Fast Acting UL
Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Agency Approval
632.800 6 x 32 mm 0.2-50A 250Vac/dc 1kA
Fast Acting UL
Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Agency Approval

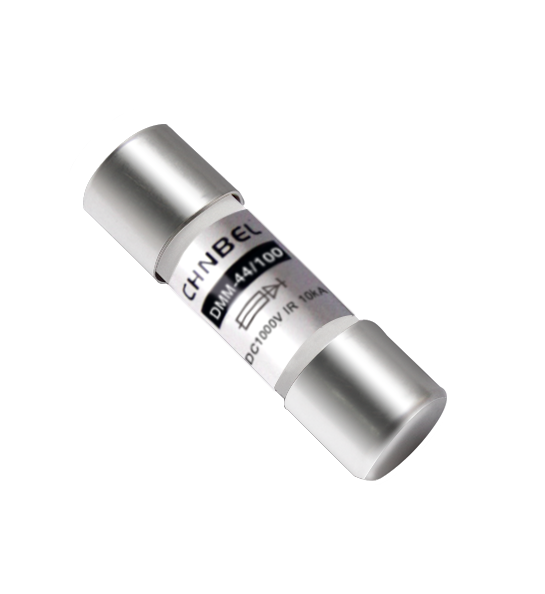

DMM 10 x 35 mm 400mA/600mA/800mA 1000Vdc 10kA
Fast Acting UL
Part No. Size Current Rating Voltage Rating Breaking Capacity
Characterstic
Agency Approval

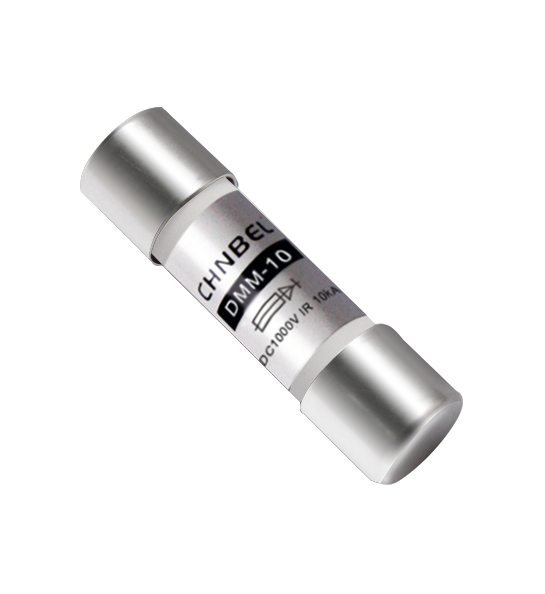

DMM 10 x 38 mm 10-15A 1000Vdc 10kA
Fast Acting UL
尺寸:
5 x 20mm, 6 x 25mm 6 x 32mm 10 x 35mm 10 x 38mm
電壓：1000Vdc/750Vdc/500Vdc/300Vdc/250Vdc/75Vdc
電流：0.25-50A
分?jǐn)嗄芰? 高分?jǐn)?/span>
應(yīng)用：
5G通信；鋰電池；儀器儀表；分布式儲(chǔ)能；轉(zhuǎn)換器；逆變器；DC電源。
